MDT Controller | Hantas
MDT Controller | Hantas

MDT Controller | Hantas

Product Code : MD6874
Brand: HANTAS
Availability: Đặt trước
Contact

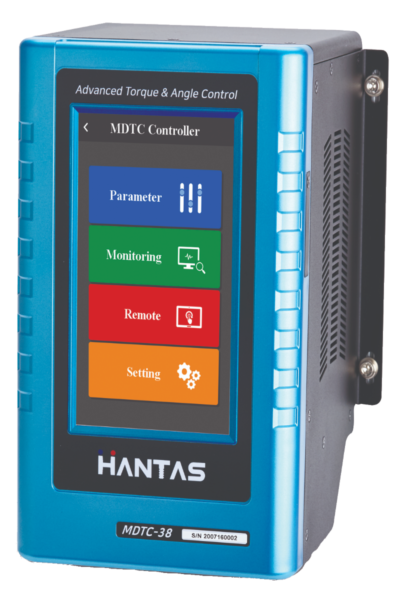

MDT Controller is a reliable robotic spindle system engineered for accurate and repeatable torque control.
MDT Controller can more accurate torque measure to use sensor values, regardless of speed or tightness.
MDT Controller is optimized for Manual line, MDT Controller can see the effects of improving productivity and reducing labor fatigue level.
MDT Accessories provide automated functions to prevent workers from making mistakes.
PC or PLC can control torque, speed and tightening results monitoring by communication.

Controller specifications



Model MDTC-38

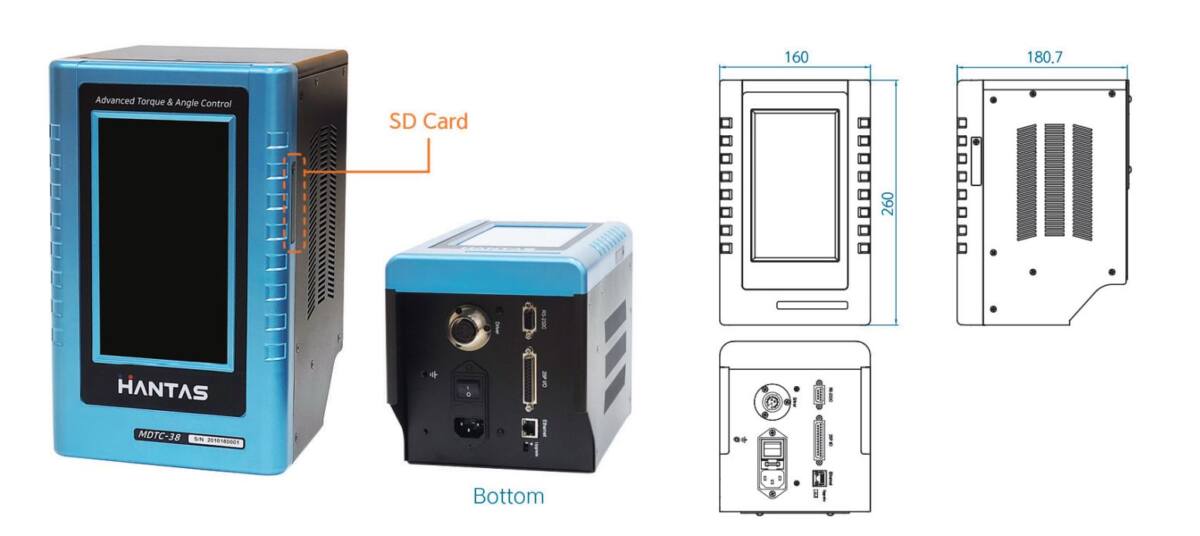

Demension 190W 258D 162H
AC Input (SMPS Power)  Different SMPS board for 110 or 220V input voltage for capacity
LCD 7 inch
SD Card Option  Standard built-in
I/O  15 in puts & 8 output
 Language English, French, Spanish, Čeština, Deutsch
 Protocol   Modbus, Open protocol
[Option] Profibus, Profinet EtherCat, EtherNet IP, CC Link
 Advanced Function 31 parameters for preset

Accessories

ParaMon Touch – MDT

[Đặc điểm chính]

  • Parameter setting & monitoring same as ParaMon PC software
  • Data auto saving in file system. One file a day / monthly folder, yearly folder
  • Available for ADC controller
  • 7” TFT LCD with touch screen
  • Auto fastening data output by RS232
  • Remote operation of the tool

[Specification]

  Description  Remark
 Power supply  AC100-240V~ 50/60Hz, 1.5A  AC-DC adapter SW24
 Input power  DC24V, 1A
 Size  202(W) 154 (H) 40 (D)
 Weight  0.55 kg
Display  7” TFT LCD with touch screen  800 x 480 px
 COM port 2 - RS232C (MDC & Barcode scanner)
2 - RS422 (ADC – IN & OUT)
1 - USB1 - Ethernet
 Memory 8 GB SD card. Auto fastening data saving.
 Auto file and folder creating		  One file a day Monthly and yearly folder
